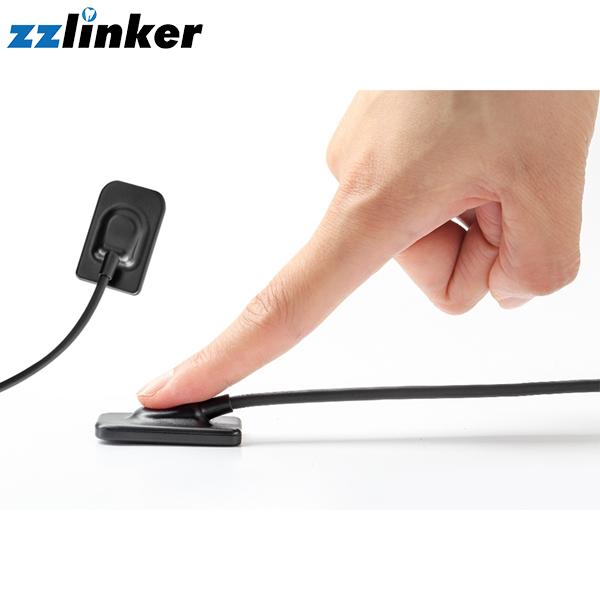

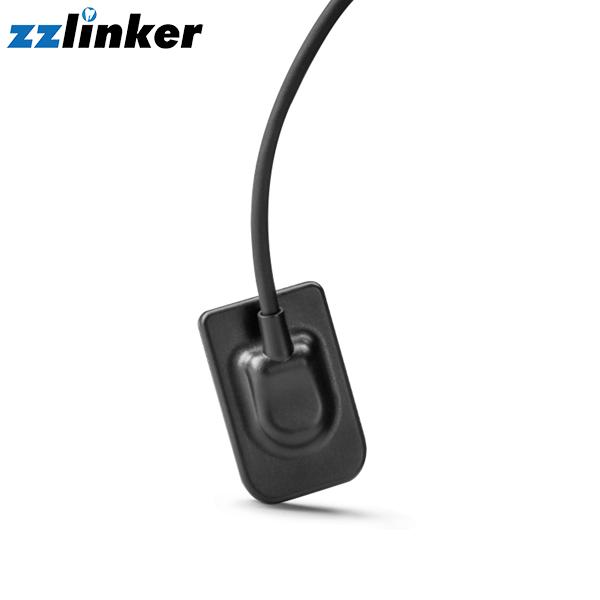

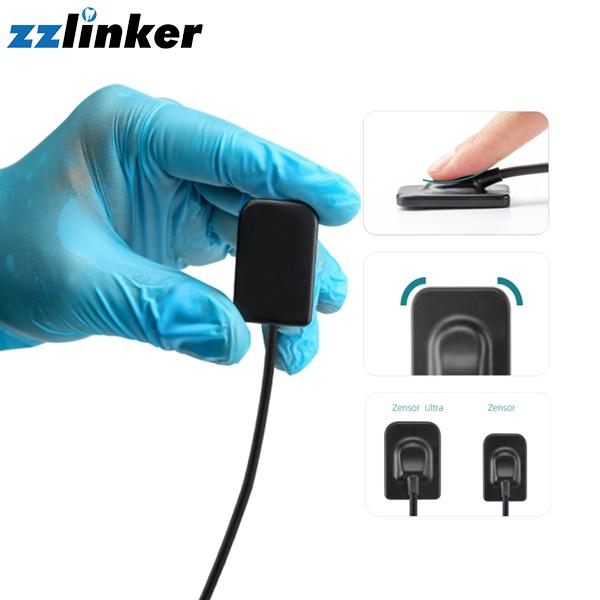

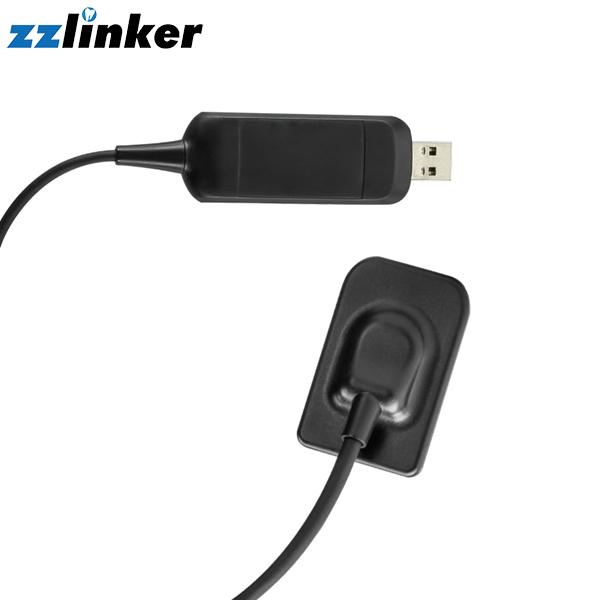

LK-C66A X-Ray Sensor

Product Item : LK-C66A
Category： Dental X-ray System
APS CMOS 25*38.5mm
Product description：
INQUIRY Send Email

The digital sensor uses CMOS technology to provide high
resolution, diagnostic quality images with wide latitude
sharpness, clear sharpness and enhanced contrast. Whether
you are converting to digitalization for the first time or expand
existing functions, and we can all help you.

Products	Zensor SEC
Mechanical Dimensions (mm)	25.0×38.5×4.5
Active Area (mm²)	20×30
Pixel Matrix	(1.5 M) 1000 x 1500
Data Interface	Direct USB, USB 2.0
Sensor Technology	APS CMOS
Scintillator	Directly deposited CsI:Tl
Length of Cable (m)	Standard 3m / Option 5m
Pixel Pitch (um)	20
Line Pair Resolution((lp/mm)	25
Gray Level	16 bit
Exposure Mode	Smart AED
Ingress Protection	IP68 for Soak disinfection
Additional	Support TWAIN protocol
Operation System	Windows 7 and above, 32 / 64 bit
