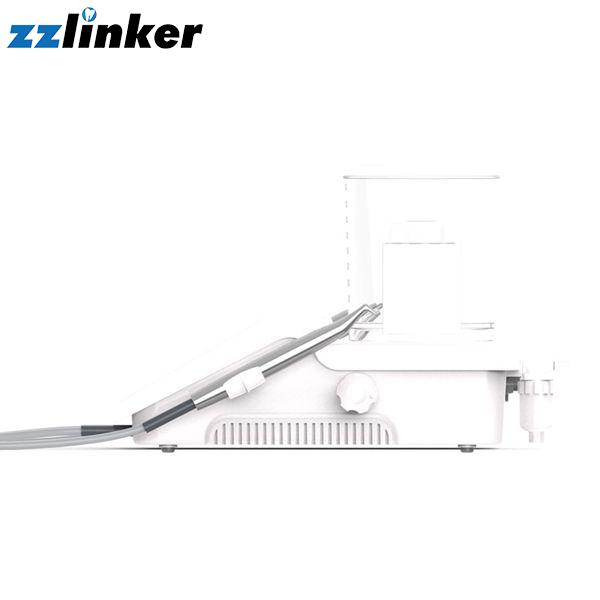

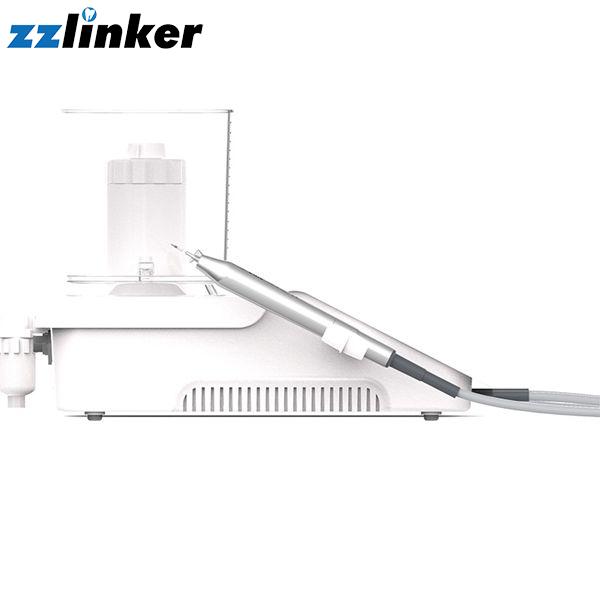

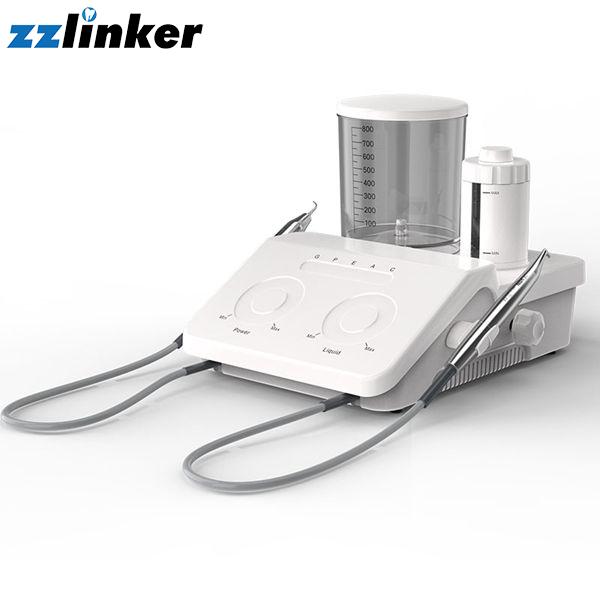

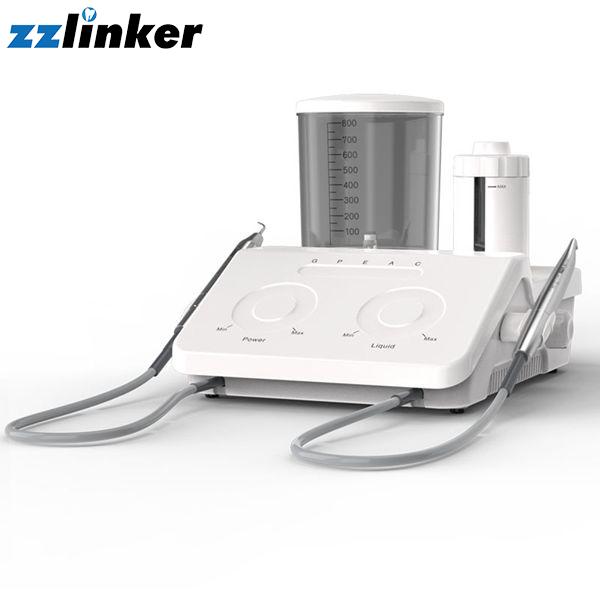

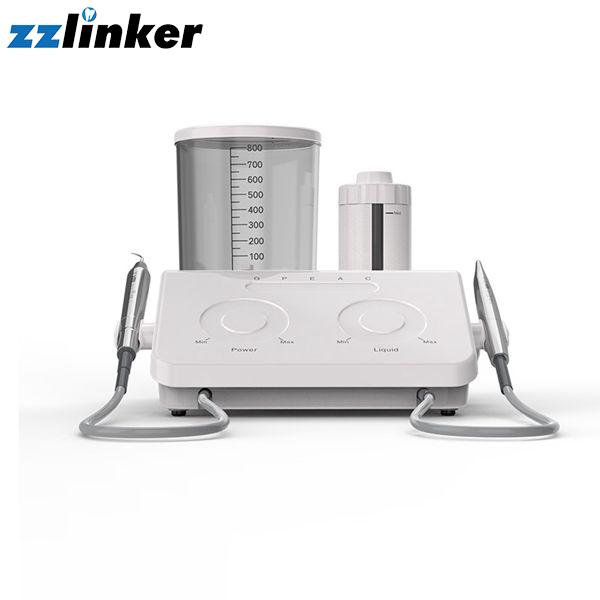

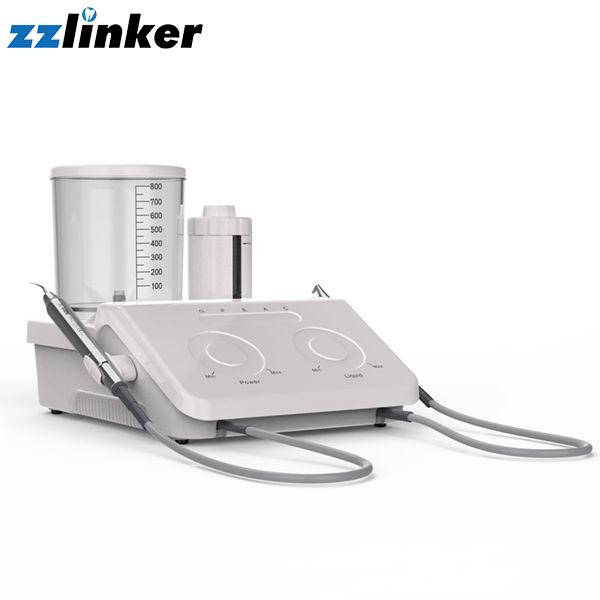

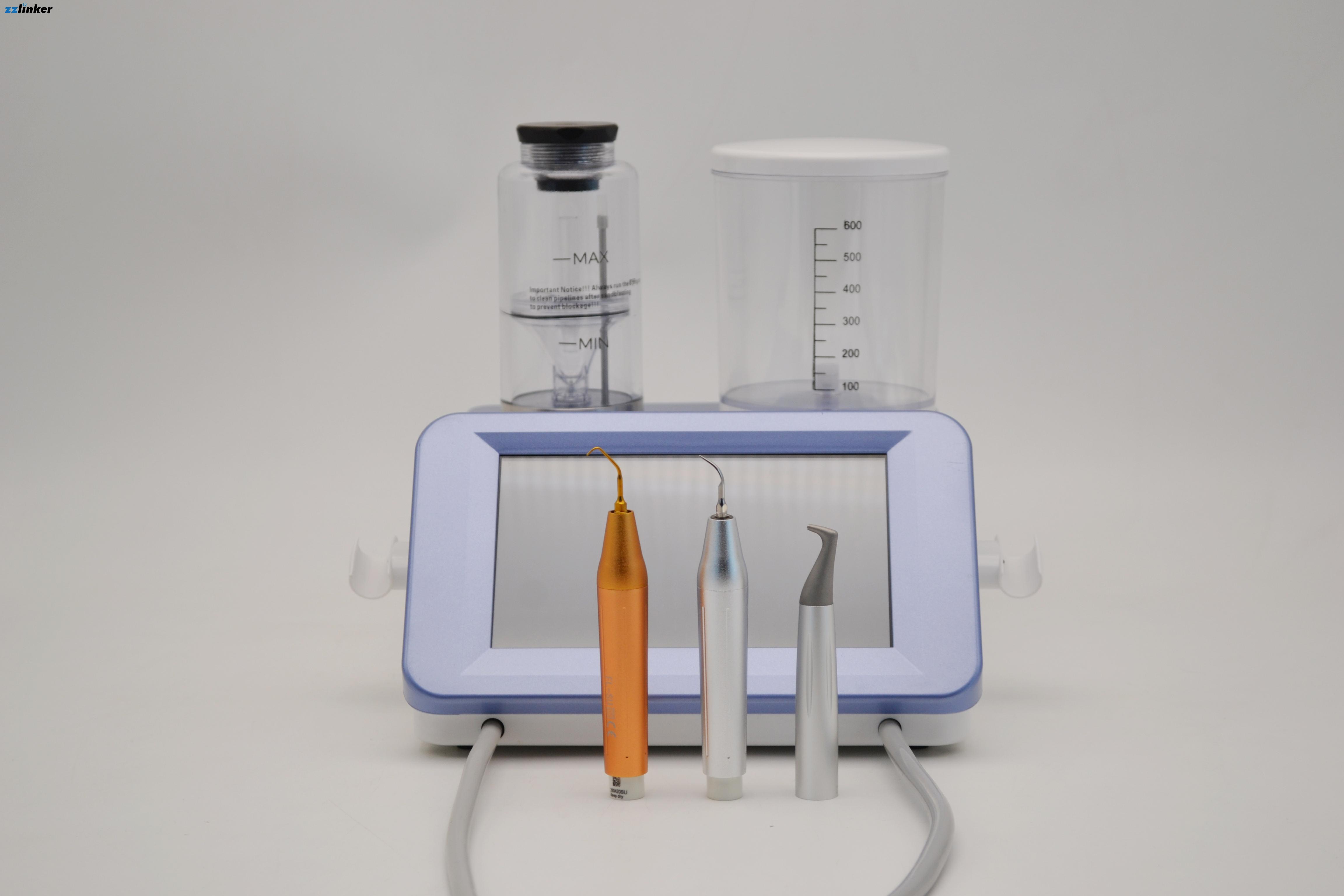

LK-F21 Ultrasonic Scaler

LK-F21 Ultrasonic Scaler

LK-F21 Ultrasonic Scaler has both ultrasound system and air polishing system. It is suitable for scaling,periodontal treatment,air polishing and root canal irrigation.

Specifications:

• Input Voltage: 230 V～，50/60 Hz 0.3A
• Supply Voltage: 25V～，50Hz 1.3A
• Input Power: 35 VA
• Wireless foot switch battery: AA batteries x 2
• Tip amplitude: Minimum: 1 μm; deviation -50%. Maximum: 100 μm; deviation +50%
• Output half-excursion force: Minimum: 0.1 N; deviation -50%. Maximum: 5 N; deviation +50%
• Tip vibrating frequency: 30 kHz± 5 KHz
• Tip output power: 3 W～20 W
• Intake Pressure: 5 bar～6 bar（0.5 MPa～0.6 MPa）
• Water temperature of powder spray system: 0℃～45℃
• Requirement of powder: Only applicable to powder approved by the manufacturer
• Fuse: T2AH250V
• Fuse of Voltage:T1AL250V
• Weight of Main Unit: 2.1 kg   Net Weight：5kg
• Weight of Power Supply: 0.9kg
• Dimension of Main unit(H×M×D):310mm×370mm×170mm
• Receiving Sensitivity: -114 dB(in accordance with China National Telecommunication Law),
• Receiving frequency: 2.4G-2.5G
• Wireless foot switch: transmission frequency: 2.412GHz-2.462GHz, modulation type: GFSK, Max.
• Radiation power: 12dbm
• Software Version: V1
