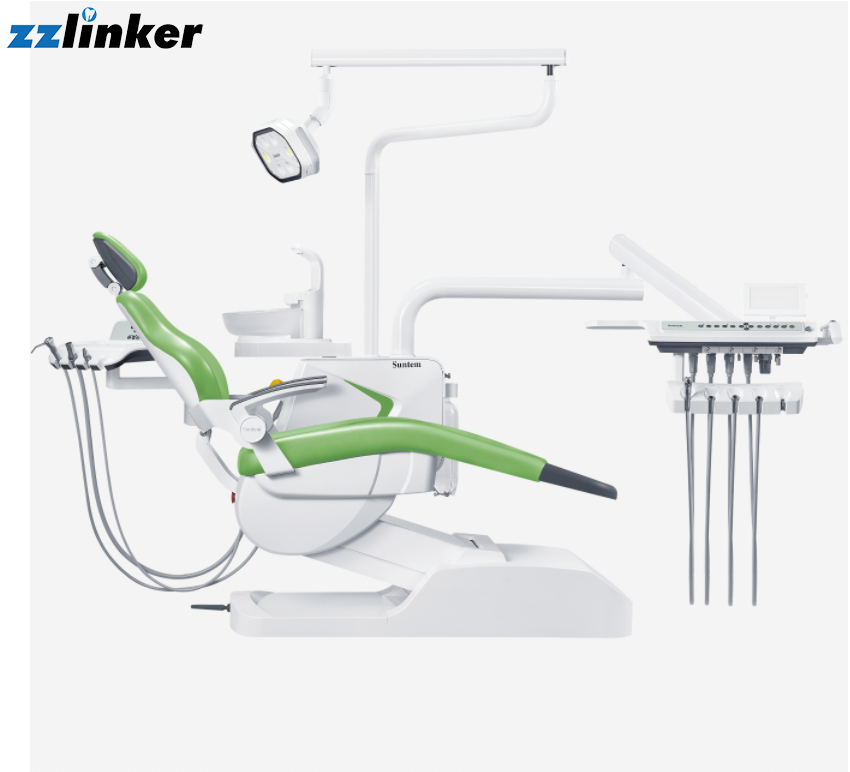

ST-D530 Dental Unit

ST-D530 Dental Unit

STANDARD CONFIGURATION:

●24V DC motor for chair (double armrest): 1 set

●Auto spittoon flushing & cup filler control system: 1 set

●3 programs inter-lock control system (integrated circuit board): 1 set

●Down-mounted instrument tray with air break: 1 set

●Outer floor box with main switch (moisture electric): 1 set

●Glass spittoon: 1 set

●Assistance holder aggregate device: 1 set

●Foldable headrest: 1 set

●Seamless cushion (PU): 1 set

●Round foot switch, 4-way foot controller: 1 set

●High suction & saliva ejector system: 1 set

●Outer water tank: 2 sets

●Imported medical water/gas pipe: 1 set

●USB connector: 1 set

●LED-7 operating light: 1 set

●LED film viewer: 1 set

●3-way syringe (hot/cold): 2 sets

OPTION:

●Seamed cushion (environmental leather)

●Induction water supply device

●Fault self-showed

●Endoscope System

●4-holes high speed handpiece

●4-holes low speed handpiece

●Imported electro-motor

●Scaler (imported/domestic)

●Curing light (imported/domestic)

●Central suction system

●Oil-less compressor

TECHNICAL PARAMETERS:

●Power/voltage: a.c.220 V-230 V/50 Hz

●Water pressure: 0.2-0.4 MPa/2.0-4.0 bar

●Air pressure: 0.55-0.8 MPa/5.5-8.0 bar

●Air output volumn: 55 L/min
