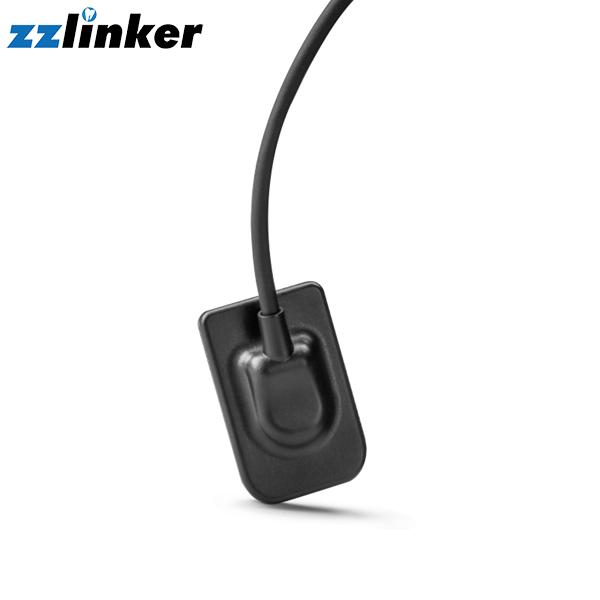

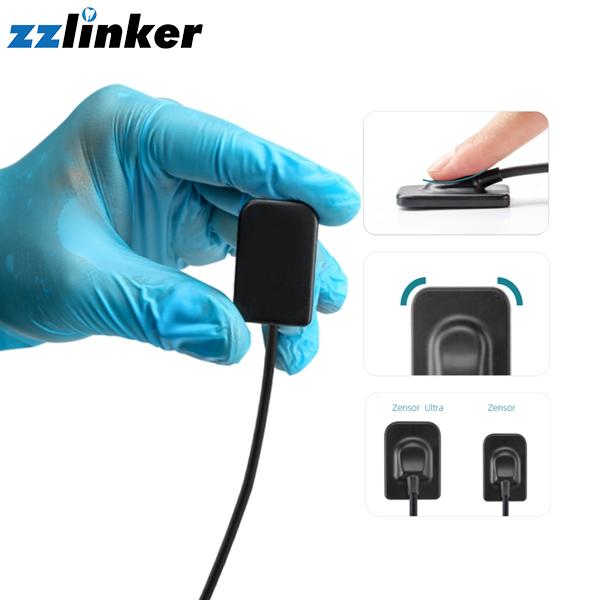

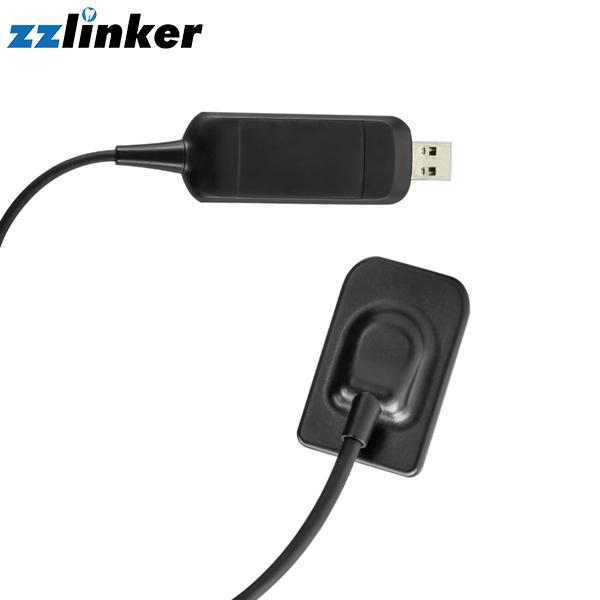

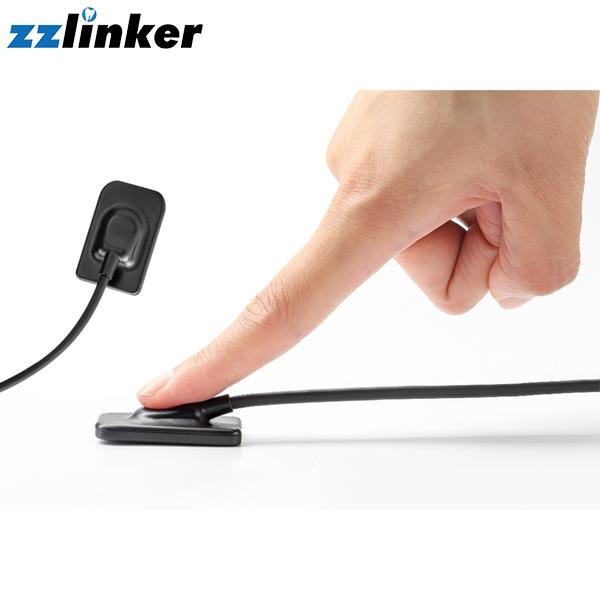

LK-C66C X-Ray Sensor

The digital sensor uses CMOS technology to provide high
resolution, diagnostic quality images with wide latitude
sharpness, clear sharpness and enhanced contrast. Whether
you are converting to digitalization for the first time or expand

existing functions, and we can all help you.

Products
Zensor SEC
Mechanical Dimensions (mm)

31.0×45.0×4.5

Active Area (mm²)

26×36

Pixel Matrix

(2.34 M) 1300 x 1800

Data Interface

Direct USB, USB 2.0

Sensor Technology

APS CMOS

Scintillator

Directly deposited CsI:Tl

Length of Cable (m)

Standard 3m / Option 5m

Pixel Pitch (um)
 20
Line Pair Resolution((lp/mm)
 25
Gray Level

16 bit

Exposure Mode

Smart AED

Ingress Protection

IP68 for Soak disinfection

Additional

Support TWAIN protocol

Operation System

Windows 7 and above, 32 / 64 bit
