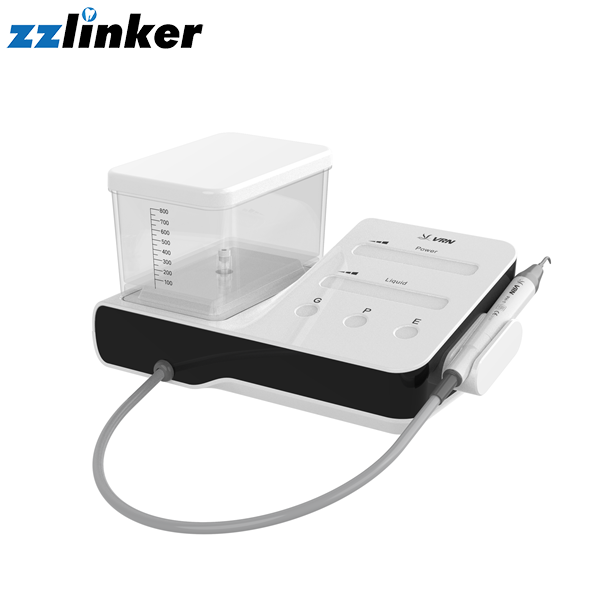

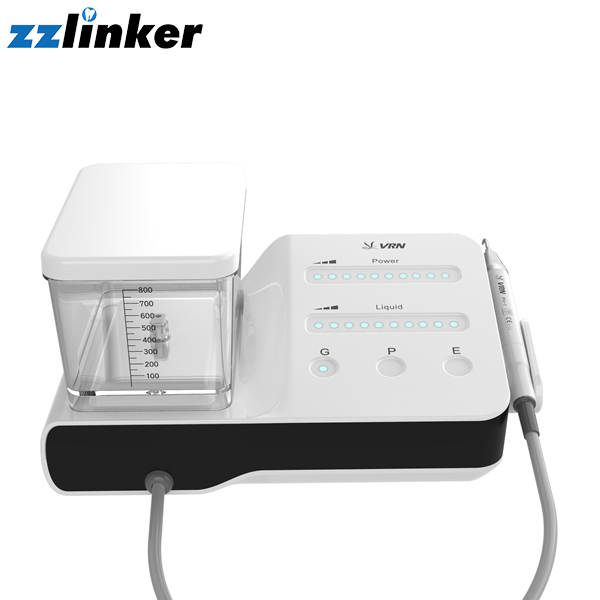

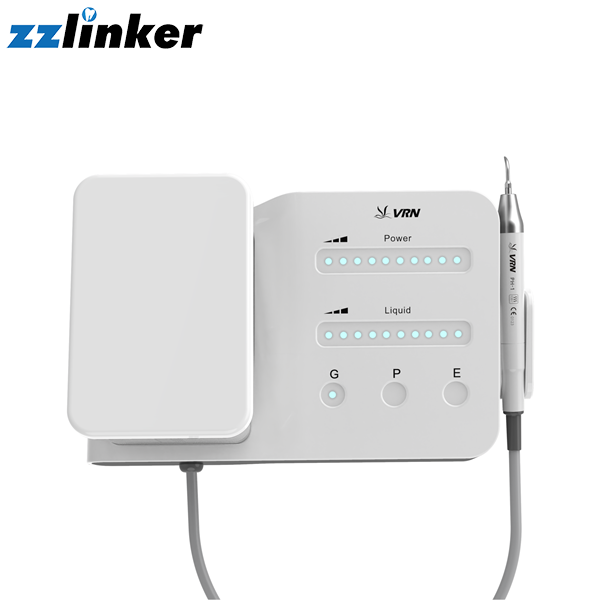

LK-F16L Ultrasonic Scaler

  • LK-F16L Ultrasonic Scaler
  • LK-F16L Ultrasonic Scaler
  • LK-F16L Ultrasonic Scaler
LK-F16L Ultrasonic ScalerLK-F16L Ultrasonic ScalerLK-F16L Ultrasonic Scaler

LK-F16L Ultrasonic Scaler

  • Product Item : LK-F16L Ultrasonic Scaler
  • Category: Ultrasonic Scaler
  • Touch Control
  • Product description:Touch Control Scaling, Perio and Endo Compatible with EMS and UDS
  • INQUIRY   Send Email

LK-F16L Ultrasonic Scaler

Specifications:

Input Voltage:
220 V±22 V~,50/60 Hz
Input Power:

35 VA

Batteries of wireless foot switch:
AA Batteries×2
Receiving sensitivity:
-114 dB,  receive frequency:2.4 G-2.5 G
Tip amplitude:
minimum,1 μm, deviation -50%
maximum, 100 μm, deviation +50%
Half deflection force:
minimum, 0.1 N, deviation -50%
maximum, 5 N,deviation +50%
Vibration frequency of tip:
18 kHz~45 kHz
Output Voltage of tip:
3 W~20 W
Fuse:
T1AH250V
Weight:
1.8 kg
Operation modes:
continuous running
Protection against electric shock rating:
Class Ⅱ equipment
Protection against electric shock degree:
B-type application part
Wireless foot switch:
Emission frequency: 2.412 GHz-2.462 GHz
Modulation type:
GFSK
Effective radiated power:
12 dbm


Note:

  • The vibration frequencies of different types tips are different, but they are all distributed within the described range.
  • l Ingress protection rating:Ordinary equipment (IPX0), Wired foot switch is waterproof equipment(IPX1), Wireless foot switch is waterproof equipment(IPX4)
  • l Degree of safety application in the presence of a flammable anesthetic mixture with air, oxygen, or nitrous oxide:Non-AP,APG type equipment
